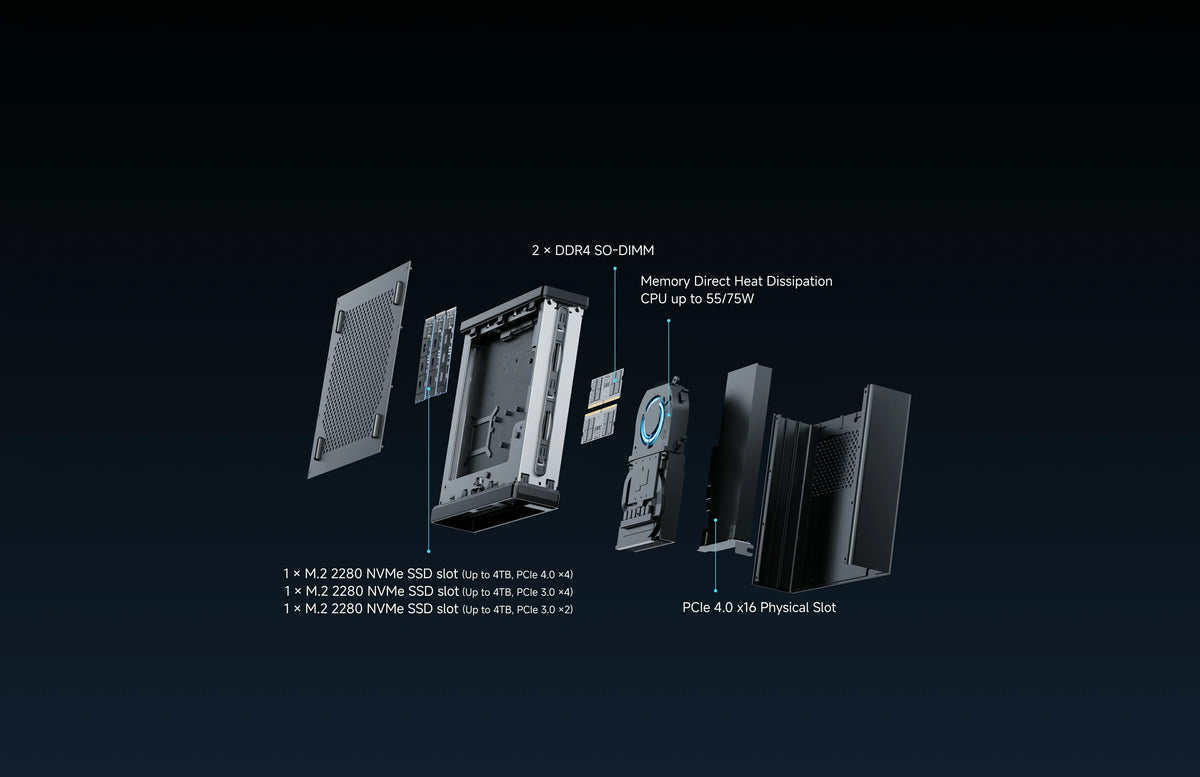

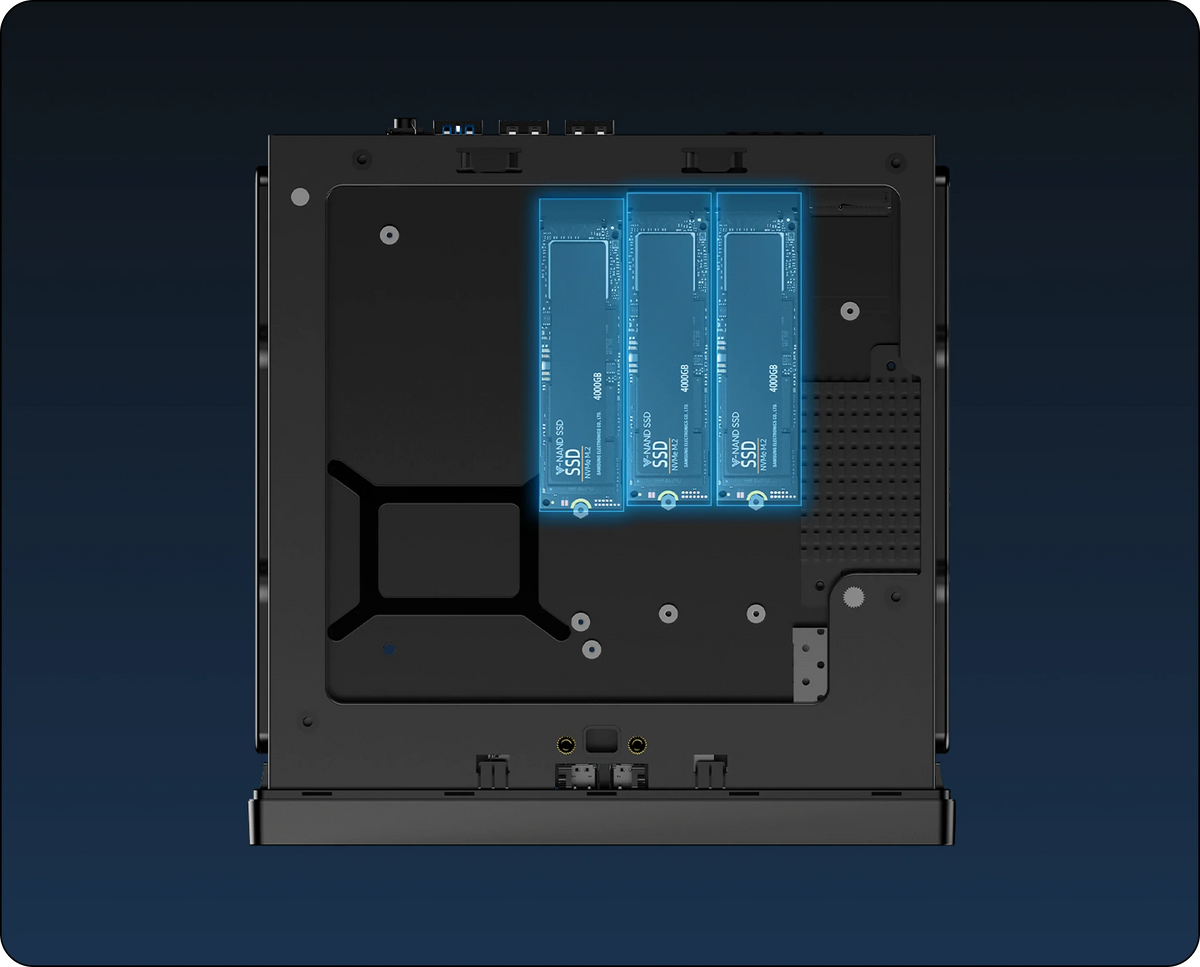

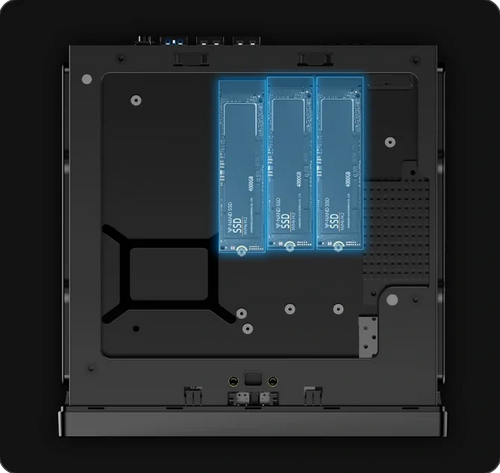

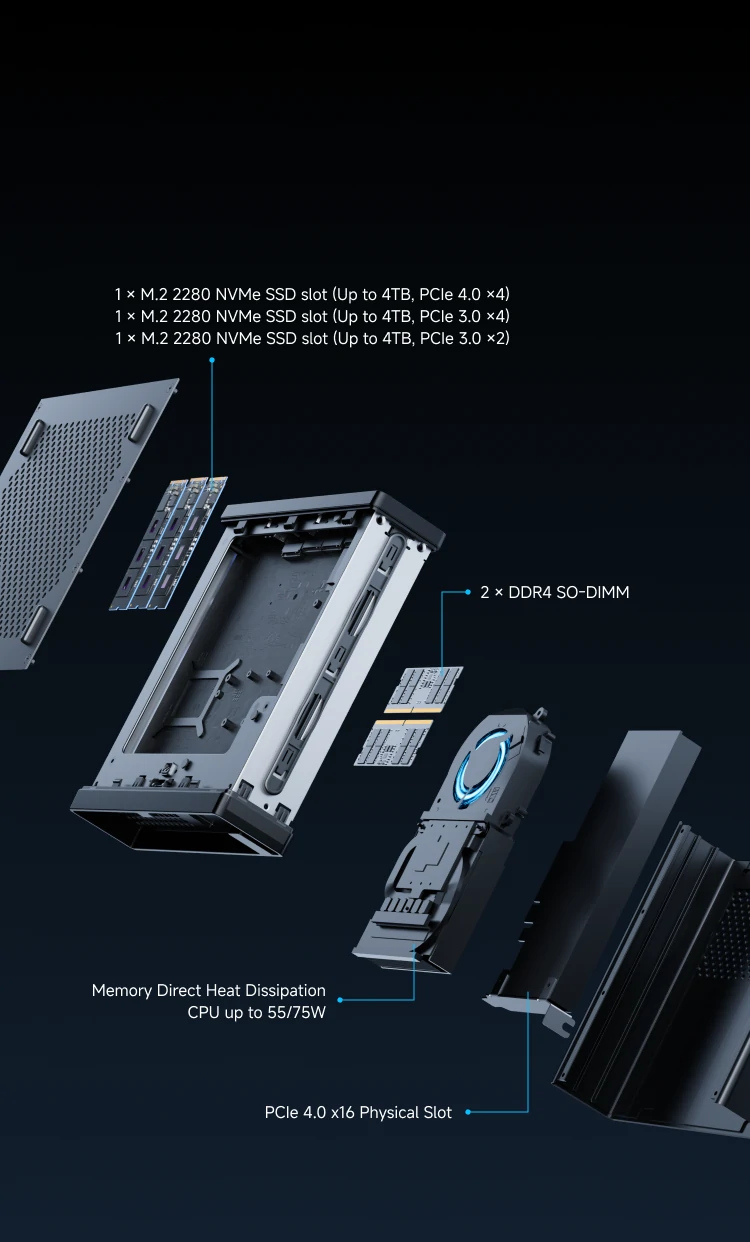

The MS-01 SE supports three M.2 2280 NVMe SSDs, with each slot supporting up to 4TB for a total storage capacity of up to 12TB. The three slots provide PCIe 4.0 x4, PCIe 3.0 x4, and PCIe 3.0 x2 connectivity respectively, giving users flexible storage expansion for applications, project files, development environments, and local data.

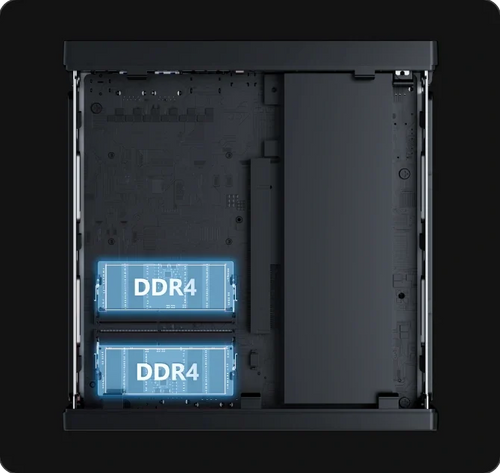

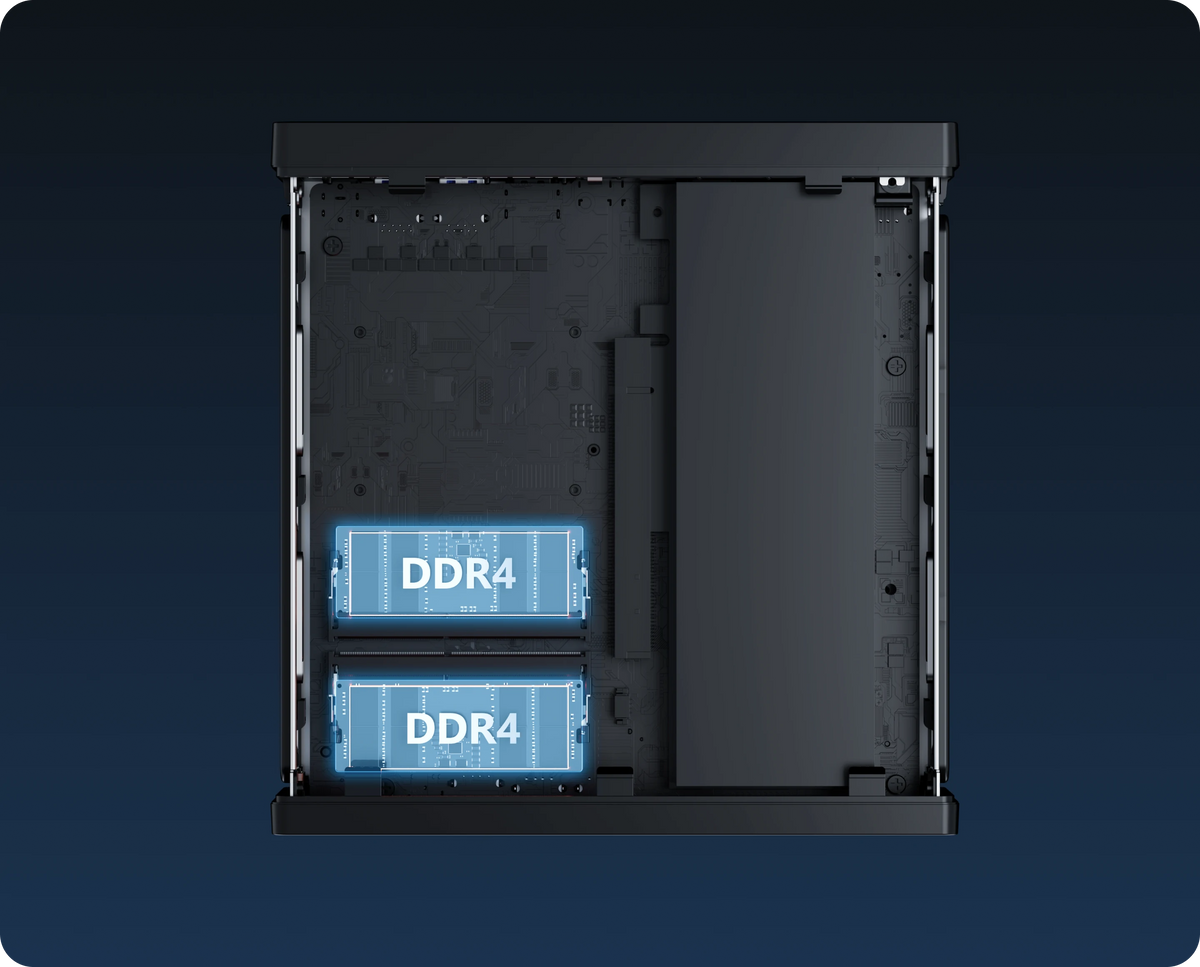

Two DDR4 SO-DIMM slots support dual-channel memory with speeds up to 3200MT/s and a maximum capacity of 64GB. Expand the memory configuration to match everyday productivity, multitasking, development environments, virtualized workloads, and other professional applications.

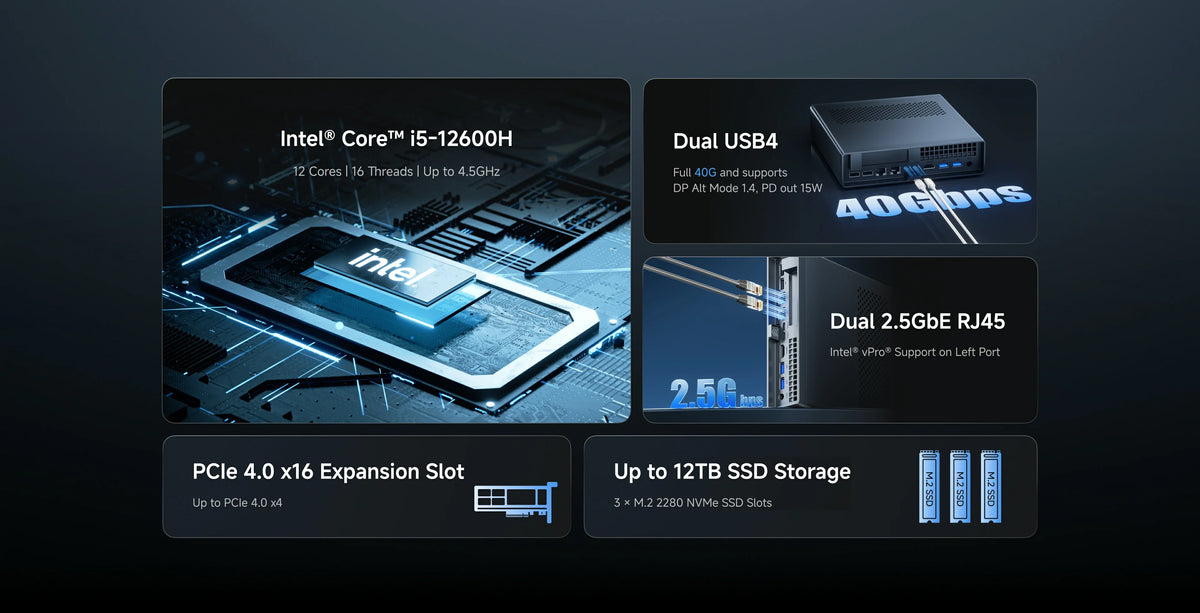

PCIe 4.0 x16 Slot

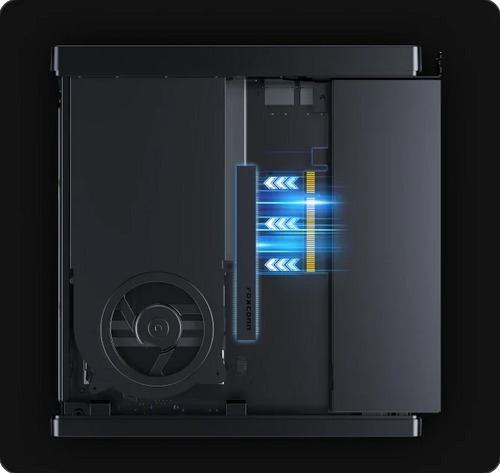

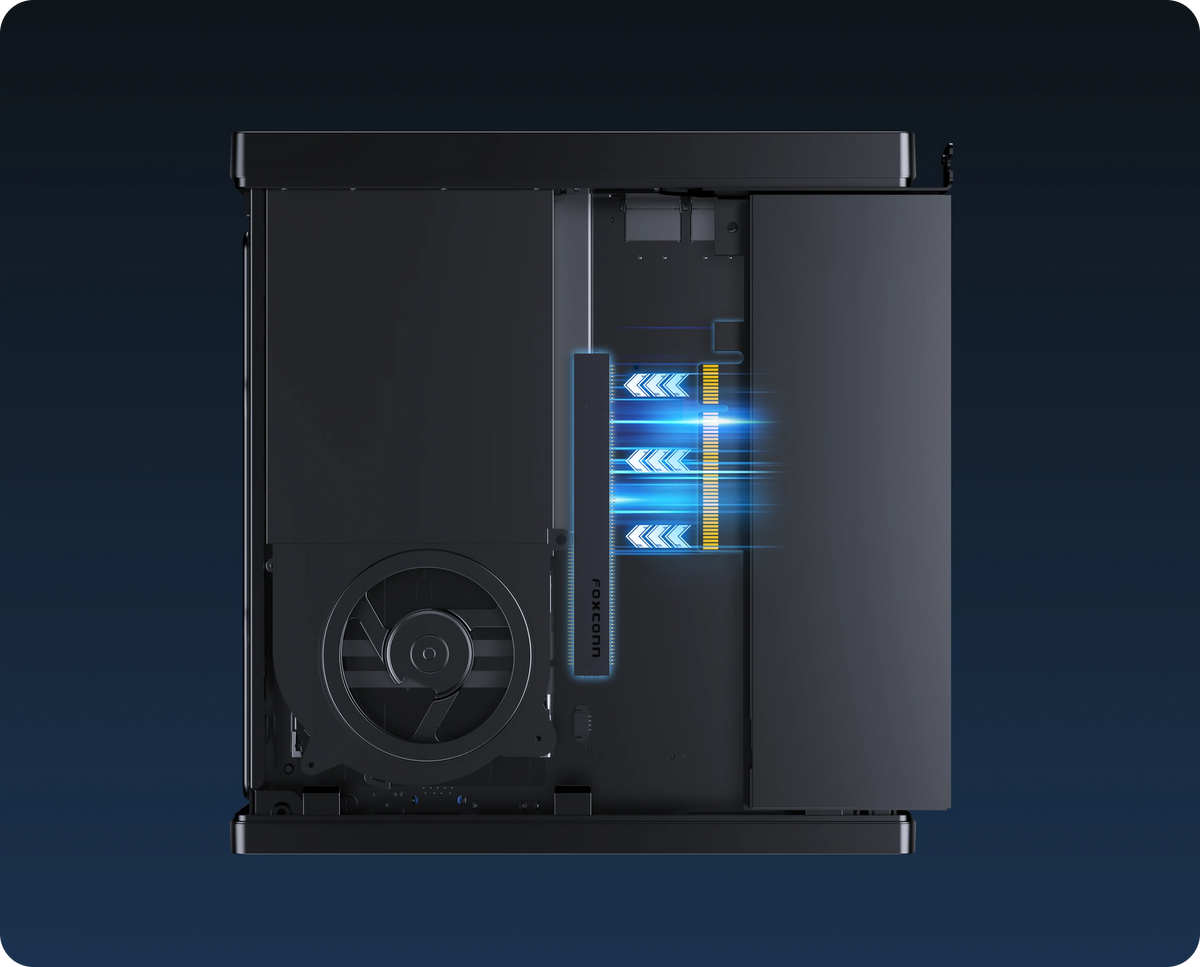

The MS-01 SE retains a full-length PCIe 4.0 x16 physical slot, operating at up to PCIe 4.0 x4 bandwidth. It supports compatible half-height, single-slot PCIe expansion cards, giving users additional flexibility to add network, storage, and other professional expansion devices according to their workflow requirements.
Physical Slot
Bandwidth

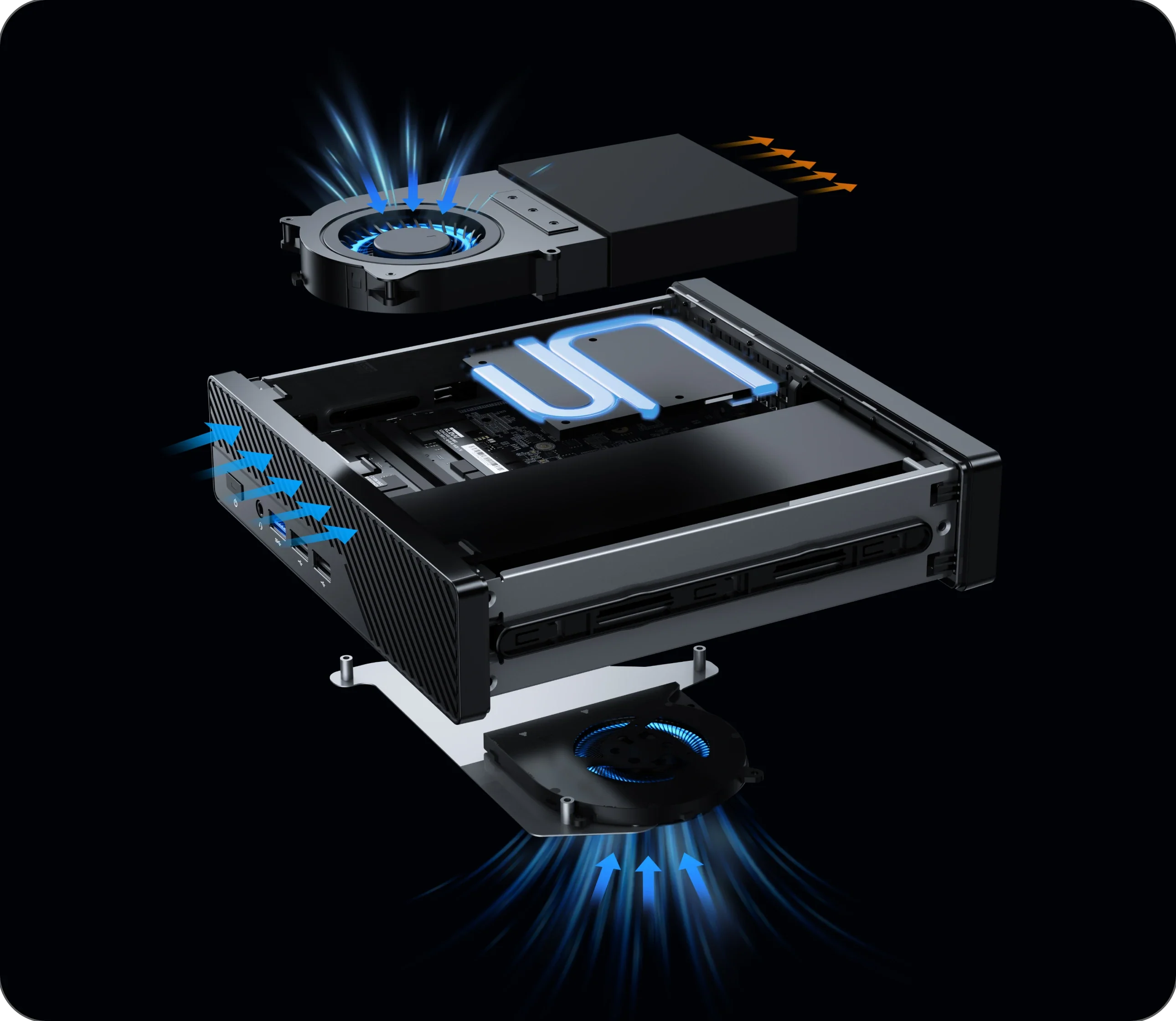

Excellent cooling system.
The MS-01 SE uses an 83 × 18 mm centrifugal cooling fan together with phase-change thermal material to maintain stable performance during sustained workloads. In MINISFORUM laboratory testing at an ambient temperature of 25°C, CPU temperature reached 65°C at 36W during an AIDA64 FPU stress test and 74°C at 55W under combined CPU and GPU load.

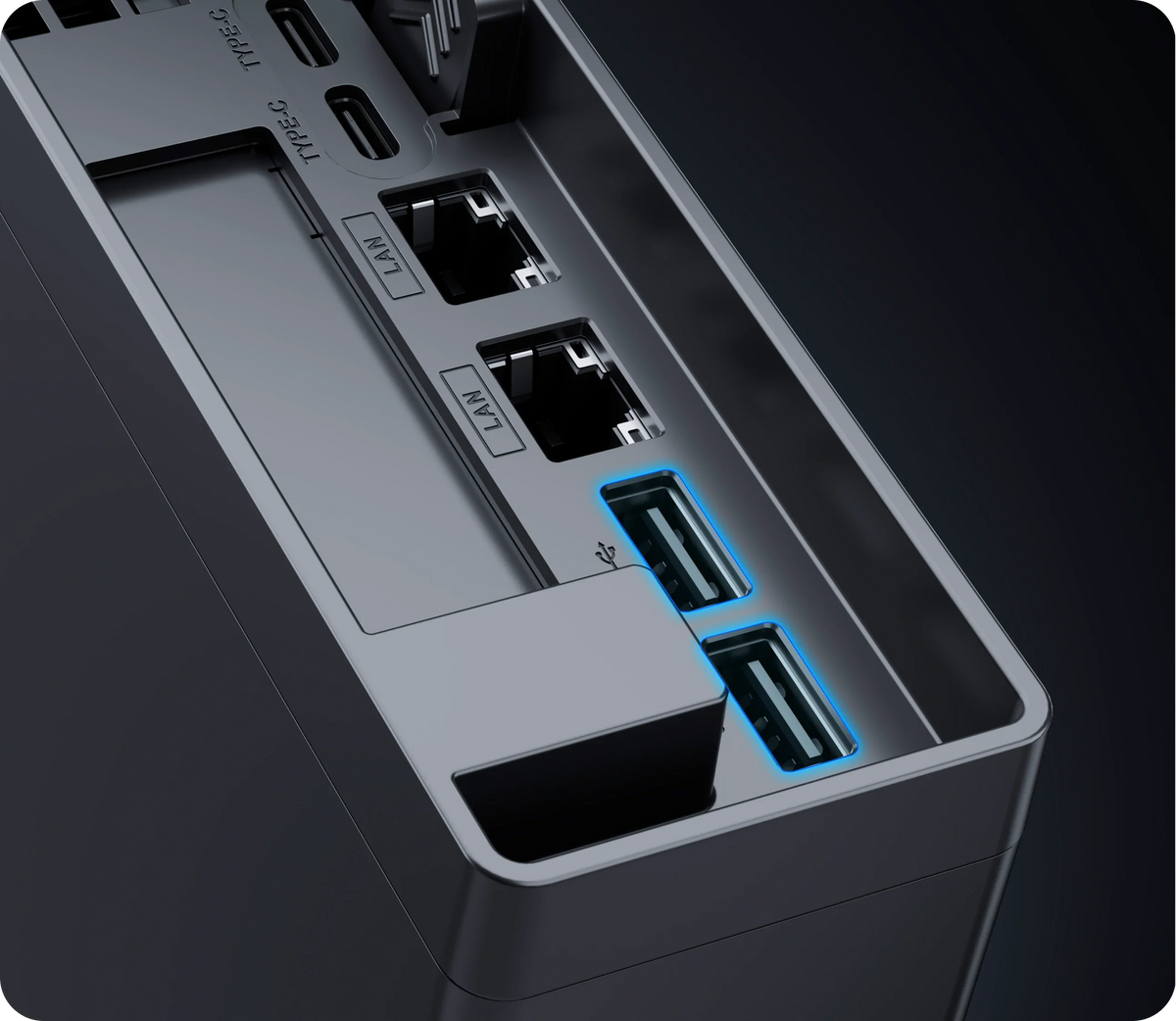

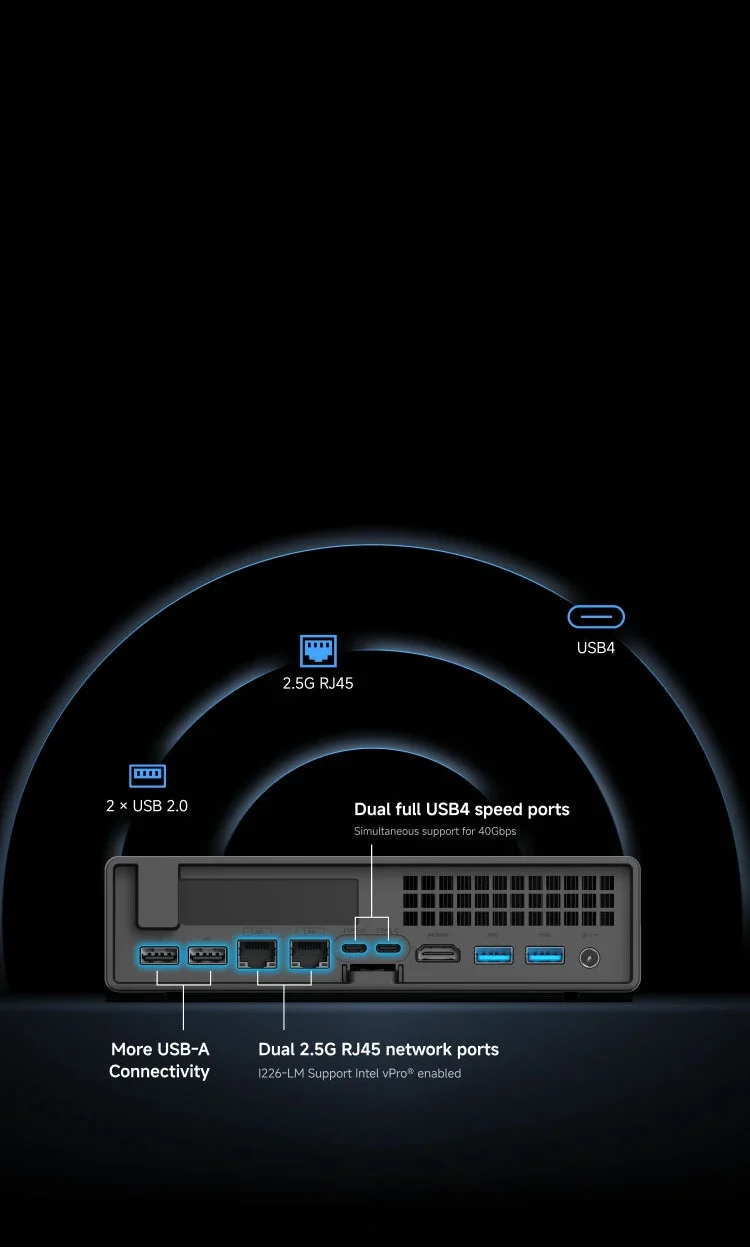

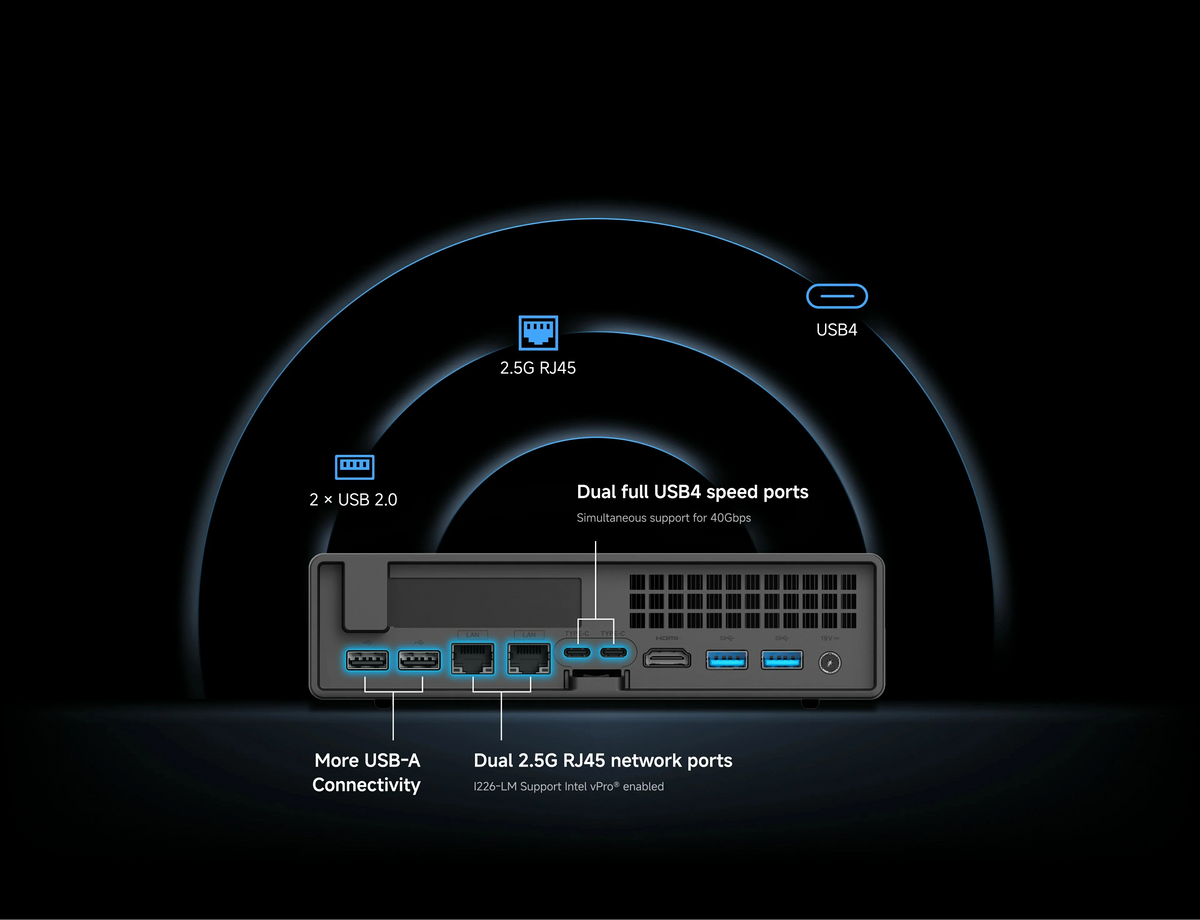

The MS-01 SE adds two USB 2.0 Type-A ports to the rear panel alongside two USB 3.2 Gen2 Type-A ports. Together with the front USB ports, it provides more connections for keyboards, mice, storage devices, adapters, and other everyday peripherals.

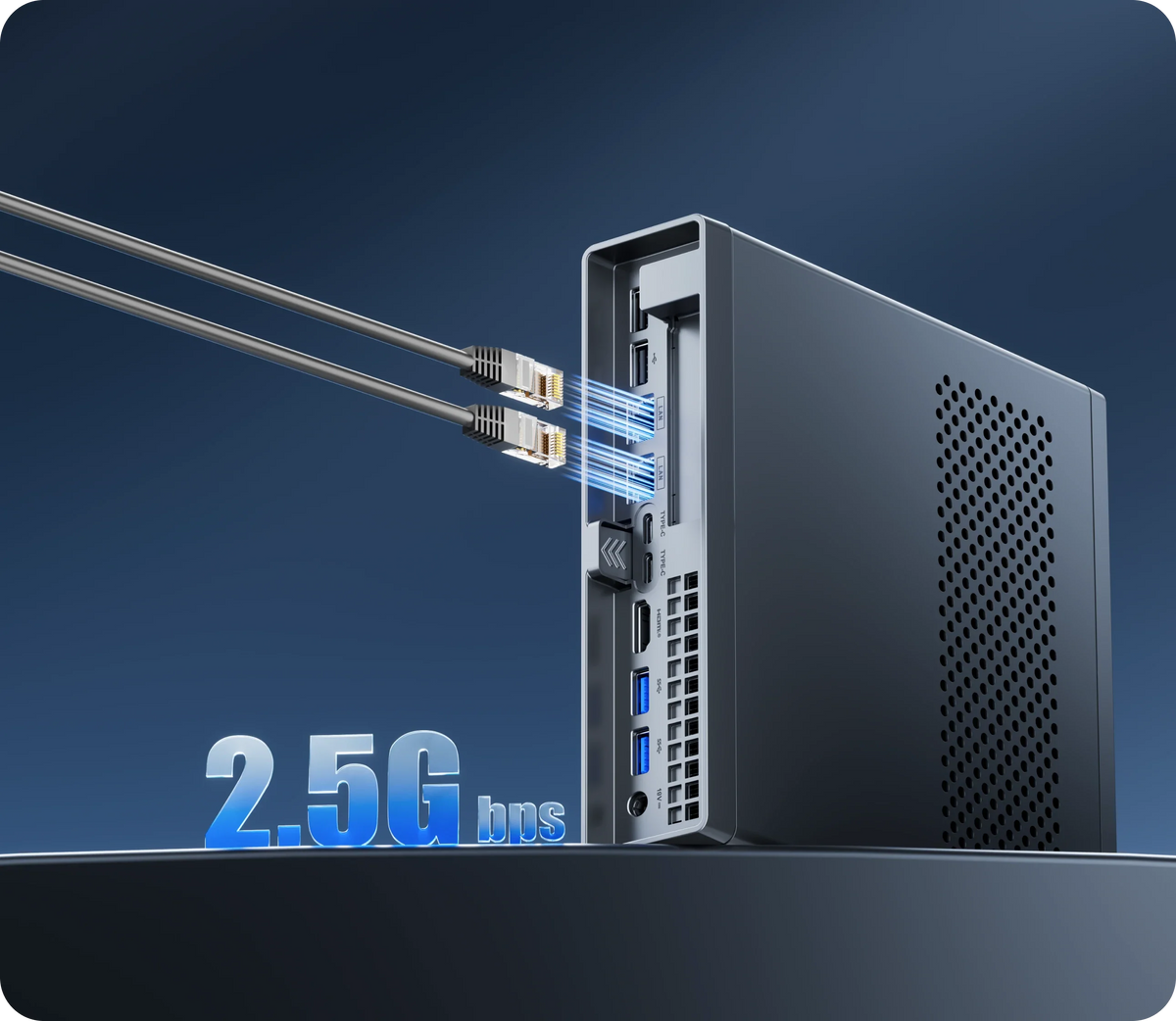

Equipped with two 2.5GbE RJ45 ports, the MS-01 SE provides flexible multi-gigabit wired connectivity for office networks, local servers, data transfer, and professional deployments. The Intel® I226-LM port also supports Intel® vPro® remote management.

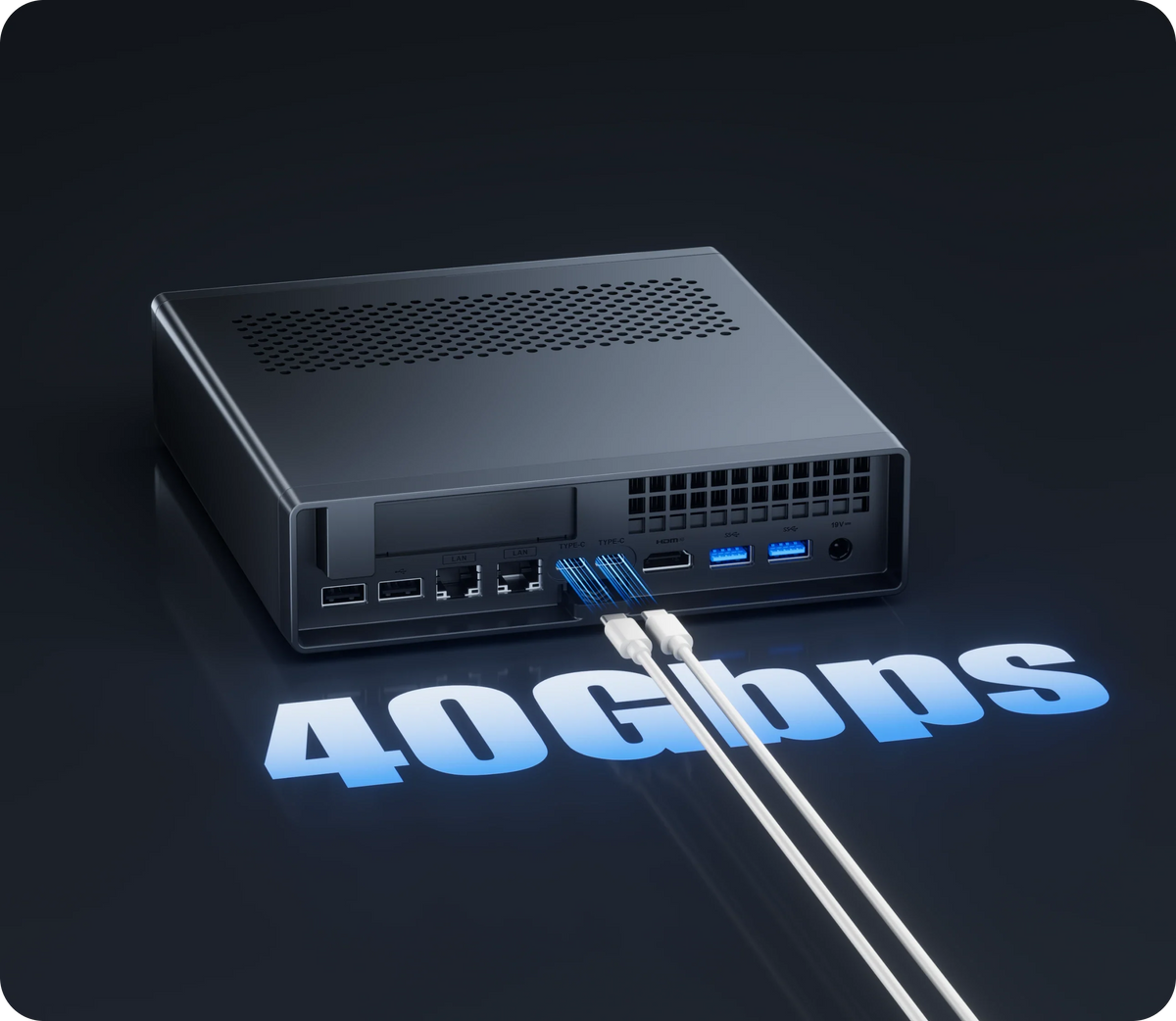

Two USB4 ports deliver up to 40Gbps data transfer and support DisplayPort™ Alt Mode 1.4. Each port supports display output up to 8K@60Hz or 4K@144Hz, bringing high-speed data connectivity and high-resolution display support through a single interface.
Package Contents

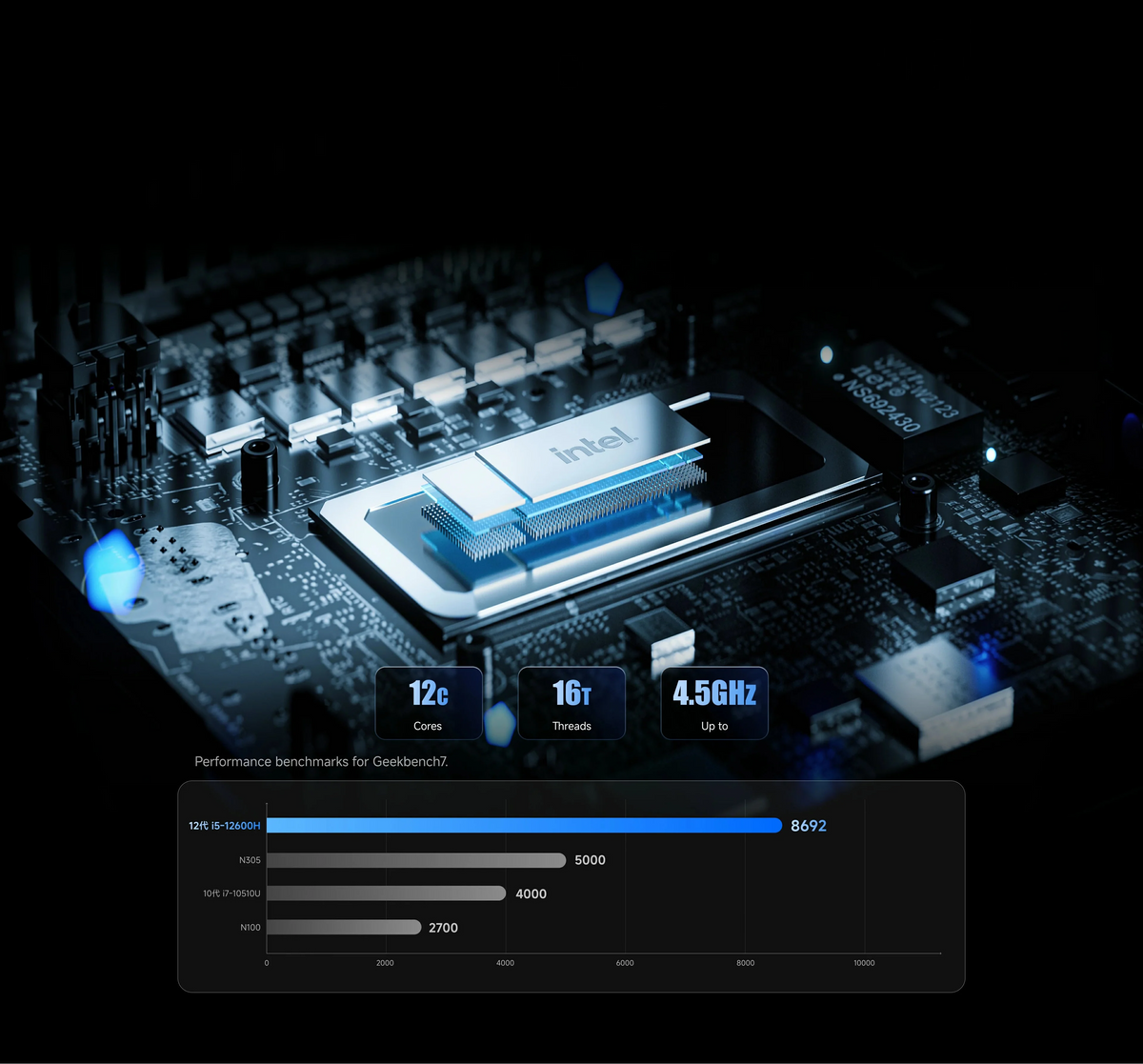

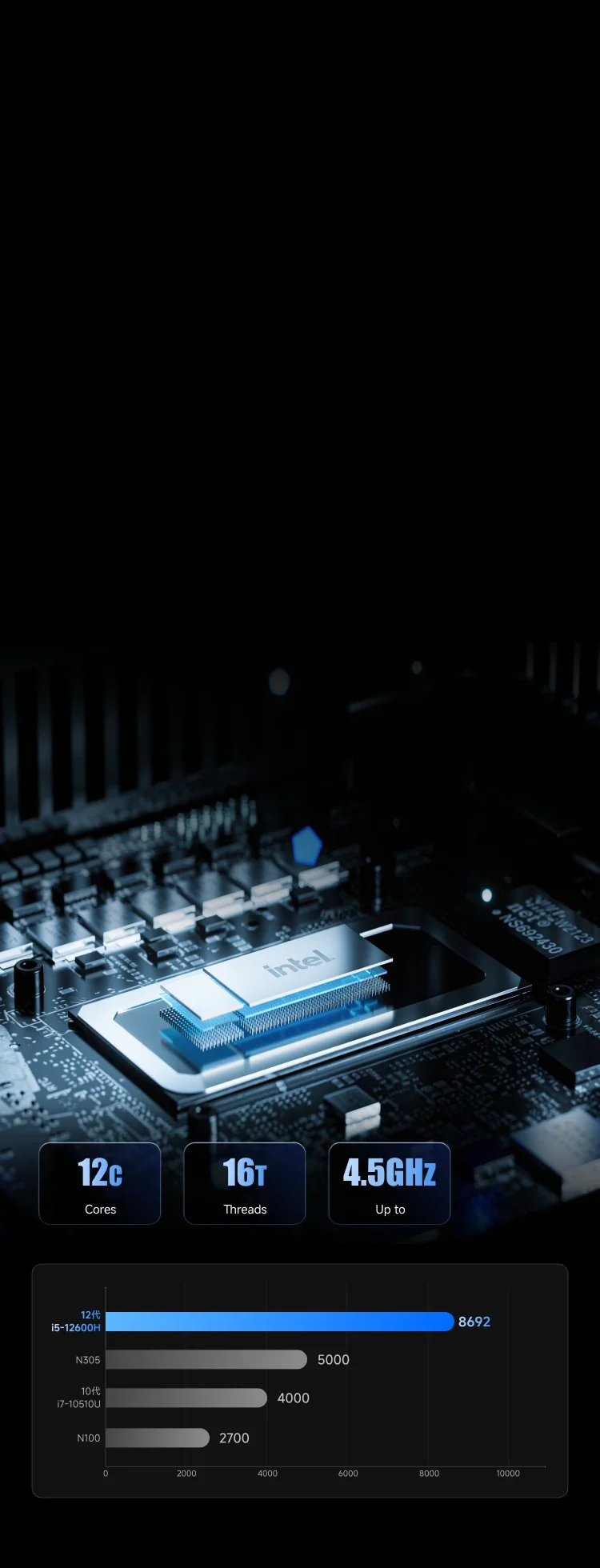

CPU Model: Intel® Core™ i5-12600H
Total Cores: 12 (4P + 8E)
Total Threads: 16
E-core Turbo Frequency: 3.3 GHz
P-core Turbo Frequency: 4.5 GHz
TDP (Balance Mode): 55W/75W (Turbo)
Intel® Iris® Xe Graphics (Dual-channel memory)
Intel® UHD Graphics (Single-channel memory)
Memery Type: DDR4 SO-DIMM × 2
Available SKU Capacities: 0/16/32/64GB
Maximum Supported Speed: 3200MHz
Maximum Supported Capacity: 64GB
1 × M.2 2280 NVMe SSD slot (Up to 4TB, PCIe 4.0 ×4)
1 × M.2 2280 NVMe SSD slot (Up to 4TB, PCIe 3.0 ×4)
1 × M.2 2280 NVMe SSD slot (Up to 4TB, PCIe 3.0 ×2)
CPU TIM Material: Phase Change Material (PCM)
CPU Cooling System: 83×18mm centrifugal fan
Max Fan Speed (CPU): 4000 RPM (system setting)
Idle Noise (Balance Mode): 30 dB @ 50cm (front-facing) [Note: Tested in MINISFORUM lab environment]
Full Load Noise (Balance Mode): 42 dB @ 50cm (front-facing) [Note: Tested in MINISFORUM lab environment]
M.2 2230 E-Key WiFi/BT Combo Module (PCIe Only): Wi-Fi 6E(Module: MediaTek MT7902 ), Bluetooth® 5.3
2.5GbE RJ45(Module:Intel I226-LM х 1)
2.5GbE RJ45(Module: Intel I226-V х 1)
HDMI x1 (Maximum Resolution Support: 4K@60Hz)
USB4 Type-C x 2 (Maximum Resolution Support: 8K@60Hz/4K@144Hz)
HDMI х 1
USB4 Type-C x 2
3.5mm Combo Jack ×1
3.5mm Combo Jack х 1

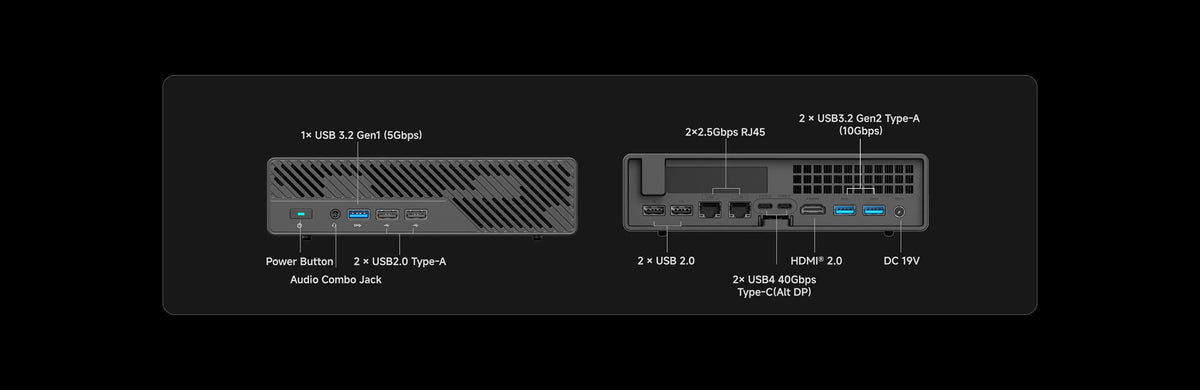

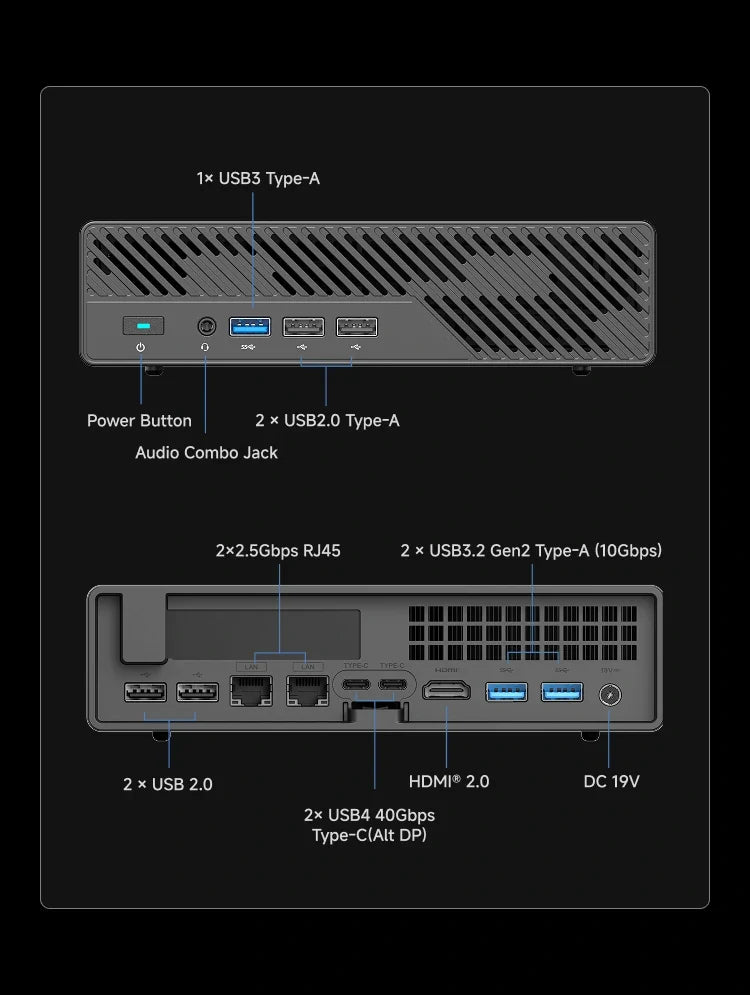

Front Panel:
1 × 3.5mm Combo Audio Jack
1 × USB 3.2 Gen1 (5Gbps)
2 × USB 2.0
Rear Panel:
2 × USB4 Type-C (40Gbps, DP Alt Mode 1.4, PD out 15W)
1 × HDMI 2.0
1 × 2.5GbE RJ45 (Intel I226-LM, vPro® enabled)
1 × 2.5GbE RJ45 (Intel I226-V)
2 × USB 3.2 Gen2 Type-A (10Gbps)
2 × USB 2.0
Internal Connectors:
1 × PCIe ×16 slot (PCIe 4.0 ×4, non-split)
1 × USB 2.0 Type-A
Power Button with LED ×1
Reset Pinhole ×1
180W (19V/9.47A) Connector: 5.5×2.5mm DC Jack
